Why A Truss Gantry Crane Is Lightweight And Anti-Wind Designed

If you are going to choose a suitable gantry crane at your facility, there are two important aspects to consider. First of all, it should be lightweight which means it will be easier to put into place. It should also have the ability to deal with high wind conditions, similar to what many people experience when they are working on the docks. This is usually made possible when you are installing what is called a truss gantry crane. It uses a truss on the top, instead of the solid beam, which will make it less likely to be affected by the wind, and can also add extra support due to its construction.

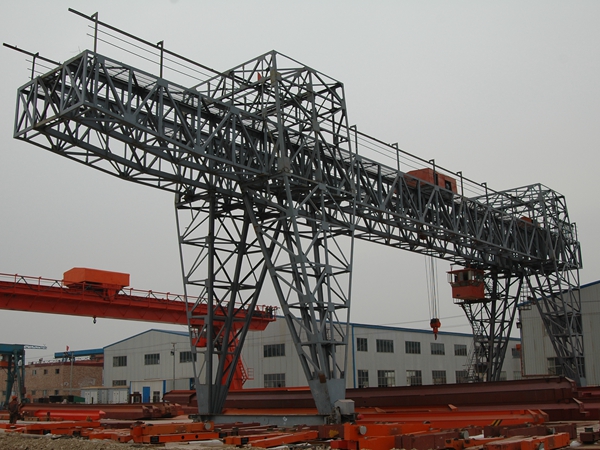

Truss-Type-MG-Double-Girder-Gnatry-Crane-With-Cantilever-1

Overview Of A Truss Gantry Crane

These gantry cranes are designed with a truss overhead. A truss is a structure that consists of multiple girders that all work together to create a supporting structure. For example, if you have ever seen a bridge that is made in a truss design, these are some of the most stable bridges that are in existence. They are constructed with joints, also referred to as nodes, and it is because of the nodes that it will have a much higher tensile strength. In the same way that you add rebar to concrete in order to increase tensile strength, the same is true when you are designing this type of bridge. In regard to a truss gantry crane, the truss up top will not only make it less likely to be affected by windy conditions, but it will also add extra strength to the entire apparatus. You could actually add trolleys and pulleys that could lift substantially more without compromising the structure of this type of industrial crane unit.

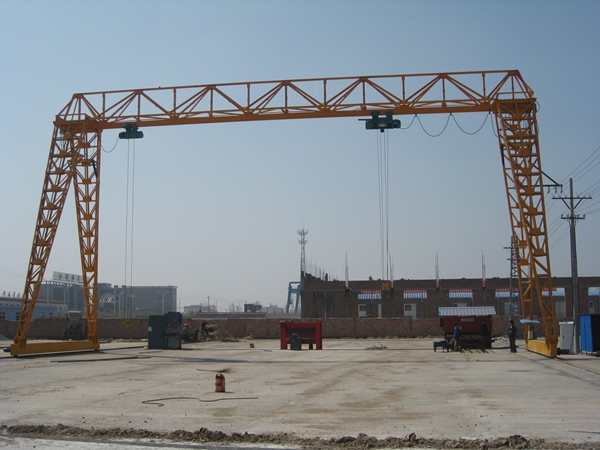

Truss-Type-MH-Gantry-Crane-Without-Cantilever

Which Type Of Truss Is Best?

The type of truss that is used will depend upon the company that you purchase it from. There are only a few different characteristics to choose from. This will include simple, planar, and space frame trusses that are all designed to provide extra support. There are different types of trusses including lenticular, bowstring, Pratt and Warren. All of these will work very well with a crane that you are installing, helping to provide the extra support that you will need for moving your merchandise.

Will It Take Longer To Set Up?

Although there is quite a bit of extra material that is used in the construction of a truss for a gantry crane, all of this is done prior to delivery. This means that it will arrive ready to install so it will not take any additional time. The only difference is that it may cost you significantly more to have a gantry crane with a truss simply because it’s going to be much more versatile and strong.

The installation of a truss gantry crane may actually be a very important decision for your company, especially if you are getting larger containers and at your facility. This will enable you to safely lift all of the heavier weight, without worrying about compromising the entire system, plus you will be able to expand by using stronger pulleys that can lift more weight that will not be affected by the wind. For other types of gantry cranes, just visit http://gantrycranemanufacturer.com/.
